INTELLIGENT MULTIPHASE FLOWMETER
Differential pressure weighing measuring device
- At present, mainstream methods used in multi-phase flow measurement are manual separation and measurement, gamma ray and mass flow meter, which have the disadvantage of measuring inaccuracy or accurate but with radiation hazard. Due to the difficulties in multi-phase flow measurement, defects in measurement, delivery, and health management of oil wells, resulting in slow progress in the construction of digital oil fields.

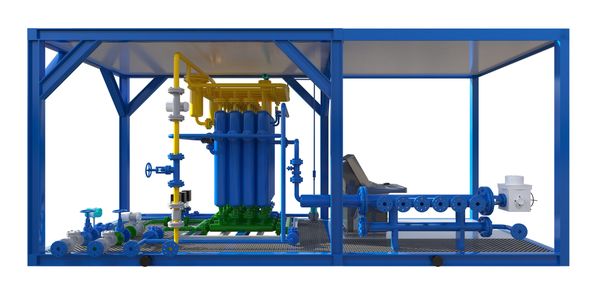

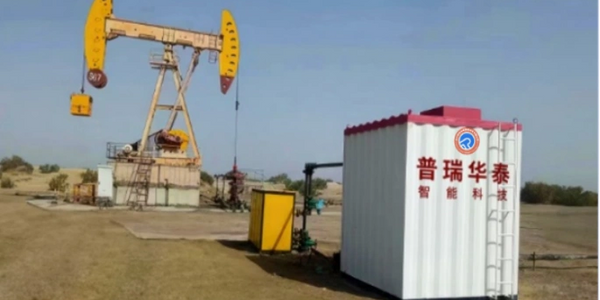

Skid-mounted Intelligent differential pressure weighing measuring device
- The new differential pressure weighing measuring device consists of a skid-mounted intelligent differential pressure weighing measuring device and a new intelligent automatic well-selecting device. It can be used to separate the liquid and gas of crude oil, and to measure the separated liquid and gas.

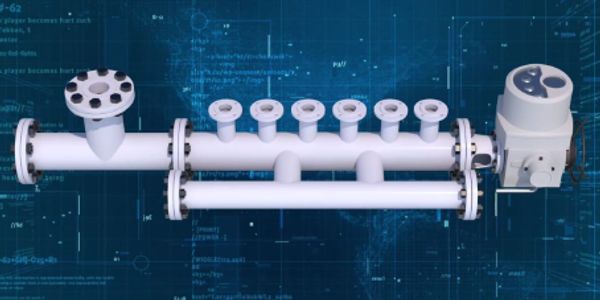

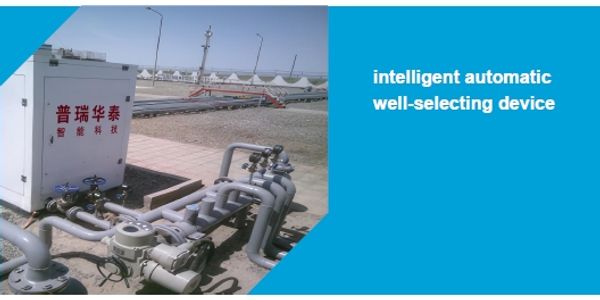

intelligent automatic well-selecting device
- The automatic well-selecting device is a special electric valve developed for controlling, measuring the gas and oil in single well, which is in response to the renovation needs of oilfield metering stations. It can replace the manifold and electric three-way valve group in old-fashioned metering stations.
- Together with other devices of the system, one set of well-selecting device can be used in measuring of multiple single wells. Measuring station can automatically change the well or start measurement in remote mode or be locally operated.
Product structure of differential pressure weighing measuring device
- The intelligent measuring device is consisting by group A group B measuring tank, three-way change valve, liquid level sensor, temperature sensor, solenoid cut-off device, differential pressure transmitter, vortex precession flowmeter, cloud computing control center.
- Design pressure: 2.5-10Mpa.
- Liquid range: 0--100m³/ D (set as needed)
- Moisture range: 0--100 %
- Measurement error in gas: ≦3%
- Gas range: 30--50000m³/D (set as needed)
- Measurement error in liquid: ≦3%、
- Measurement error in moisture: ≦5%
Product structure of automatic well-selecting device
- Intelligent well-selecting device consists of: electric actuator, position sensor, screw rod, telescopic tube, slider, by-pass and 6-way well-selecting shell.
- Technical parameter:
- Design pressure: 4.0 Mpa-10.0 Mpa
- Explosive-proof grade: Exd IIB T4
- Protection level: IP65
- Ambient temperature: -30℃~60℃
- Sulfur prevention grade: grade one
- The intelligent well selection device adopts 4-well, 6-well, 8-well, and 12-well structures, which can meet the
- 24- hour uninterrupted measurement of 4 to 12 wells in metering stations or platform wells.
Product principle and characteristics
Wide Adaptability
By using in different climatic conditions and different crude oil media such as heavy oil and light oil, has proved that the device has widespread adaptability.
Oilfield “Health” Manager
By monitoring the equipment flow chart (such as inlet and outlet liquid velocity, instantaneous water content, etc.), the device can find out the changes in oil, gas and water flow, and conduct the “online physical examination and solution before the problem arises”, thereby achieving auxiliary guidance for oil well production and extending the lifespan of oil wells.
Accurate Measurement
It has high measurement accuracy, stable running and a measurement inaccuracy within 2% in measuring daily oil, gas and water output, and has obtained a national statutory testing report.
Intelligent and Efficient
The entire operation of the device is intelligent and visualized, can be connected to the oilfield production management system through mobile phones, computer and cloud, which improves the efficiency of oil well management. It has the characteristics of "smart oilfield" port equipment.
